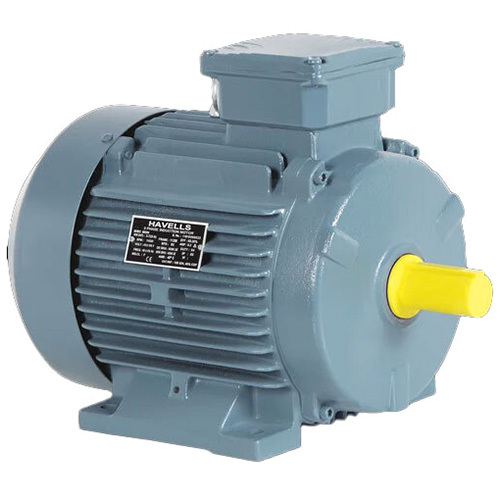

220Hp-1440 Rpm Foot Mounted Phase - 3

Get a Price/Quote

Product Details:

Standard Conforms to IS:325 & IEC standard
Efficacy High (IE2/IE3)
Noise Level <85 dB
Current Type AC
Rated Voltage 415 V
Horse Power 220 HP
Pressure Standard Atmospheric
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

220Hp-1440 Rpm Foot Mounted Phase - 3 Price And Quantity

Minimum Order Quantity 1 Piece

220Hp-1440 Rpm Foot Mounted Phase - 3 Product Specifications

Mounting Type Foot Mounted
Standard Conforms to IS:325 & IEC standard
Efficacy High (IE2/IE3)
Noise Level <85 dB
Shaft Diameter 100 mm (Approx.)
Output Power 220 HP
Current Type AC
Dimension (L*W*H) As per manufacturer standard (approx. 1800mm x 900mm x 1100mm)
Horse Power 220 HP
Weight Approx. 1100 kg
Power 164 kW
Rated Voltage 415 V
Speed 1440 RPM
Pressure Standard Atmospheric
Poles Number 4
Phase 3 (Three Phase)
Starting Type DOL (Direct On Line)
Ambient Temperature -15C to +45C
Product Type Industrial Electric Motor
Features Robust construction, Low vibration, Long life, High starting torque
Bearing Type Heavy Duty Deep Groove Ball Bearing
Cooling Method Forced Air
Color Blue / Grey
IP Rating IP55
Voltage 415 V
Frequency (MHz) 50 Hz
Protect Feature TEFC (Totally Enclosed Fan Cooled)
Torque 1457 Nm (Approx.)
Motor Type Squirrel Cage Induction Motor
Power Rating 220 HP
Rated Frequency 50 Hz
Sealed Type Sealed

Frame Size 400 mm
Rotation Bi-directional
Frequency Tolerance +/- 5%
Insulation Class F (Class F)
Altitude Up to 1000 meters above sea level
Ambient Humidity Up to 90% RH (Non-condensing)
Overload Capacity 150% for 60 seconds
Service Factor 1.15
Terminal Box Location Top Mounted
Thermal Protection Optional PTC available
Connection Star / Delta
Lubrication Grease Lubricated
Vibration Level Within permissible limits as per IS standard
Application Industrial, Pumps, Compressors, Fans, Blowers, Crushers
Paint Type Anti-corrosive coating
Operation Continuous Operation
Duty Type S1 (Continuous Duty)

Product Description

Find the eminent 220Hp-1440 Rpm Foot Mounted Phase-3 motor, a top-tier powerhouse crafted for astonishing industrial performance. With a formidable output of 220 HP and a robust squirrel cage induction build, this motor ensures high efficacy and continuous operation under duty type S1. The anti-corrosive coating and IP55 protection secure durability, while advanced features such as optimal vibration control, high starting torque, and thermal protection enhance reliability. Order this affordable solution for pumps, compressors, fans, blowers, and crushers to elevate your workflow with eminent quality and longevity.

Versatile Applications & Extra Features

The 220Hp-1440 Rpm Foot Mounted Phase-3 motor isn't just for standard operations; it fits seamlessly into varied sectors like cement plants, water treatment, HVAC systems, and heavy-duty conveyors. Used extensively for both primary and auxiliary functions, its astonishing extra features include bi-directional rotation, grease-lubricated bearings, and optional PTC thermal protection. With its robust and sealed construction, this motor guarantees long life, reliable power delivery, and exceptional performance even in demanding industrial environments.

Premium Delivery & Export Markets

Premium delivery times ensure your operations keep flowing without interruption, with exchange options available if requirements shift. The sample policy is straightforward, helping you evaluate suitability before a larger outlay. Widely exported to major markets in Asia, Africa, and the Middle East, this product upholds quality throughout the process. Experience efficient handling and reliable service, whether you're looking to exchange, evaluate, or make a bulk outlay for your industrial needs.

FAQ's of 220Hp-1440 Rpm Foot Mounted Phase - 3:

Q: How does the 220Hp-1440 Rpm Foot Mounted Phase-3 motor benefit industrial applications?

A: This motor delivers eminent efficiency, robust reliability, and high starting torque, making it ideal for demanding tasks such as running pumps, compressors, crushers, and similar machinery. Its long lifespan and low vibration support continuous operations.

Q: What features ensure the motor's durability and long life?

A: Features like anti-corrosive paint, IP55 protection, heavy-duty deep groove ball bearings, and a fully sealed design contribute to exceptional durability, even in harsh industrial conditions.

Q: Where can this motor be used beyond standard industries?

A: Besides typical industrial plants, the motor suits other applications such as water treatment facilities, HVAC systems, cement factories, and heavy-duty conveyor systems, offering versatile performance.

Q: What is the process for ordering and sample evaluation?

A: Customers can request sample units to evaluate suitability. Once satisfied, an order can be placed with clear timelines. Exchange options are available if specifications need adjustments after delivery.

Q: When does the optional PTC thermal protection come into use?

A: The PTC thermal protection is optional and is recommended when operations are exposed to high ambient temperatures or require additional motor safety against overheating.
