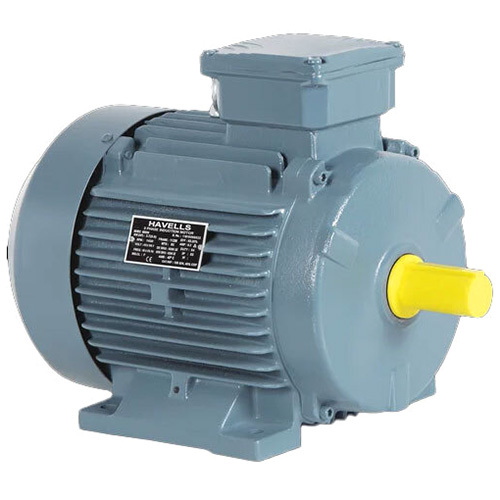

75Hp-1440 Rpm Foot Mounted Phase - 3
Product Details:
- Rated Voltage 415 V
- Motor Type Squirrel Cage Induction Motor
- Power Rating 55 kW
- Poles Number 4 Poles
- Rated Frequency 50 Hz
- Sealed Type IP55 Sealed
- Torque 365 Nm (Approx.)
- Click to View more
X
75Hp-1440 Rpm Foot Mounted Phase - 3 Price And Quantity
- 1 Piece
75Hp-1440 Rpm Foot Mounted Phase - 3 Product Specifications
- 4 Poles
- 55 kW
- 55 kW (75 HP)
- IP55
- 50 Hz
- Squirrel Cage Induction Motor
- 415 V
- Blue / As per requirement
- Robust Construction, Low Maintenance, High Starting Torque
- High Efficiency (IE2/IE3 as per requirement)
- IP55 Sealed
- 365 Nm (Approx.)
- AC
- Direct On Line (DOL)/Star Delta
- Three Phase Electric Motor
- 1440 RPM
- Foot Mounted
- 415 V
- 75 HP
- Up to 50C
- 50 Hz
- IS 325 / IEC 60034
- 75 HP
- <80 dB
- Approx. 500-650 kg
- Deep Groove Ball Bearings
- 65 mm (Approx.)
- Approx. 1100 x 600 x 700 mm
- Fan Cooled
- Totally Enclosed Fan Cooled (TEFC)
- Three Phase
- Standard Atmospheric Pressure Operation
- Clockwise (as seen from driving end)
- Up to 90% RH Non-Condensing
- Industrial, Pumps, Compressors, Blowers, etc.
- Optional
- 355
- S1 (Continuous Duty)
- 1.15
- As per IEC Standard
- Grease Lubricated
- Cast Iron Body
- Within Permissible Limits as per IS:12075
- Recommended as per manufacturer
- Class F
Product Description
Experience the allure of the lustrous 75HP-1440 RPM Foot Mounted Phase-3 Squirrel Cage Induction Motor-a hot-selling, ephemeral deal that raises standards in industrial power solutions. Its pristine, cast iron body and impeccable insulation (Class F) ensure durability and reliability, even in demanding environments. Engineered to perfection, it offers robust construction, low maintenance, and high starting torque for pumps, compressors, and blowers. This totally enclosed fan-cooled motor (IE2/IE3) operates with high efficiency while maintaining vibration levels within permissible IS:12075 limits. Secure this must-have motor before the deal disappears.
Material Feature, Usage, and Operational Direction
The 75HP-1440 RPM Foot Mounted Phase-3 motor boasts a robust cast iron body for enhanced durability and strength. Designed for continuous S1 duty, its usage is ideal for industrial setups, including pumps, compressors, and blowers. The motor's impeccable insulation and sealed IP55 enclosure ensure smooth operation even in high ambient humidity-up to 90% RH non-condensing. It runs with a clockwise rotation (as seen from the driving end), providing seamless and reliable performance where it's needed most.
Export Markets, Sample Availability, and Packaging
Suppliers and traders in India proudly export the 75HP-1440 RPM motor to diverse global markets, meeting stringent international standards. Samples can be arranged on request for qualified buyers. Each pristine unit is meticulously packaged to maintain its immaculate condition during shipment. List prices are available upon inquiry, and orders are delivered safely, ensuring your investment arrives in impeccable, ready-to-use form. Count on prompt delivery and secure packaging to support your business's operational needs efficiently.
Material Feature, Usage, and Operational Direction
The 75HP-1440 RPM Foot Mounted Phase-3 motor boasts a robust cast iron body for enhanced durability and strength. Designed for continuous S1 duty, its usage is ideal for industrial setups, including pumps, compressors, and blowers. The motor's impeccable insulation and sealed IP55 enclosure ensure smooth operation even in high ambient humidity-up to 90% RH non-condensing. It runs with a clockwise rotation (as seen from the driving end), providing seamless and reliable performance where it's needed most.
Export Markets, Sample Availability, and Packaging
Suppliers and traders in India proudly export the 75HP-1440 RPM motor to diverse global markets, meeting stringent international standards. Samples can be arranged on request for qualified buyers. Each pristine unit is meticulously packaged to maintain its immaculate condition during shipment. List prices are available upon inquiry, and orders are delivered safely, ensuring your investment arrives in impeccable, ready-to-use form. Count on prompt delivery and secure packaging to support your business's operational needs efficiently.
FAQ's of 75Hp-1440 Rpm Foot Mounted Phase - 3:
Q: How is the 75HP-1440 RPM Foot Mounted Phase-3 motor constructed for durability?
A: This motor features a robust cast iron body and impeccable Class F insulation, ensuring endurance and longevity under demanding industrial conditions.Q: What industrial applications is this motor suitable for?
A: It is ideal for operating pumps, compressors, blowers, and other continuous-duty machines in industrial environments requiring reliable, high-efficiency performance.Q: Where can buyers find export and delivery options for this product?
A: This motor is supplied and delivered by reputable traders in India and can be shipped to various export markets worldwide with secure, protective packaging.Q: When is regular maintenance required for the motor?
A: For optimal performance, regreasing intervals are recommended as per the manufacturer's guidelines, ensuring low maintenance and longevity.Q: What are the main operational benefits of using this motor?
A: The main benefits include high starting torque, low maintenance, impeccable vibration control, and sustained high efficiency, making it a dependable choice for heavy-duty processes.Tell us about your requirement
