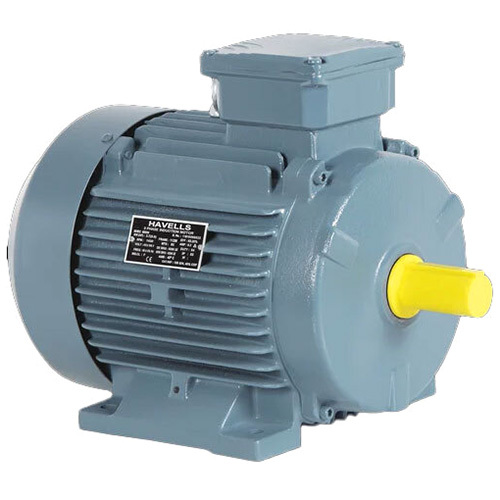

1Hp-1440 Rpm Foot Mounted Phase-3

Get a Price/Quote

Product Details:

Features Low Vibration, Low Maintenance, Sturdy Construction
Ambient Temperature -15C to +50C
Pressure Standard Atmospheric
Standard IS 325
Current Type AC
Noise Level Less Than 65 dB
Starting Type DOL
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

1Hp-1440 Rpm Foot Mounted Phase-3 Price And Quantity

Minimum Order Quantity 1 Piece

1Hp-1440 Rpm Foot Mounted Phase-3 Product Specifications

Mounting Type Foot Mounted
Features Low Vibration, Low Maintenance, Sturdy Construction
IP Rating IP55
Output Power 1 HP
Shaft Diameter 24 mm
Ambient Temperature -15C to +50C
Noise Level Less Than 65 dB
Starting Type DOL
Color Blue
Dimension (L*W*H) Approx. 340 x 205 x 225 mm
Current Type AC
Power 0.75 kW
Pressure Standard Atmospheric
Standard IS 325
Product Type Electric Motor
Phase Three Phase
Sealed Type IP55 Protection
Horse Power 1 HP
Bearing Type Double Sealed Ball Bearing
Voltage 415 V
Power Rating 1 HP
Cooling Method Air Cooled
Weight 17 kg
Rated Frequency 50 Hz
Efficacy High
Poles Number 4
Rated Voltage 415 V
Torque 6.64 Nm
Motor Type Squirrel Cage Induction Motor
Protect Feature Totally Enclosed
Frequency (MHz) 50 Hz
Speed 1440 RPM

Frame Size 90L
Insulation Class B or F Class
Frequency Tolerance +/-5%
Enclosure Type TEFC (Totally Enclosed Fan Cooled)
Mounting Holes Distance 125 mm
Application Pumps, Compressors, Industrial & Agricultural Machinery
Voltage Tolerance +/-10%
Vibration Within Permissible Limits
Rotation Direction Bidirectional
Duty Type S1 (Continuous)
Service Factor 1.15

Product Description

Discover the paragon of industrial motors: the 1Hp-1440 Rpm Foot Mounted Phase-3 Squirrel Cage Induction Motor. This spectacular and superior motor is built for efficiency, reliability, and versatility. Now available as a bargain special, you can buy online with confidence from leading suppliers and traders in India. Designed with a robust frame size of 90L, TEFC enclosure, IP55 protection, and double sealed ball bearings, it promises low vibration and minimal maintenance. Ideal for pumps, compressors, industrial and agricultural machinery, this motor ensures enduring performance in every application. Secure your superior solution today!

Spectacular Features and Versatile Applications

The 1Hp-1440 Rpm Foot Mounted Phase-3 motor stands out for its low vibration, sturdy construction, and advanced IP55 protection. Featuring high efficiency for reduced energy costs, this motor is perfect for pumps, compressors, and various industrial or agricultural machines. Its bidirectional rotation and continuous S1 duty make it highly versatile for multiple applications, ensuring optimal reliability and minimal maintenance needs in diverse environments.

Transport Services, List Price, and Supply Assurance

We offer dependable transport services for the safe and timely delivery of your 1Hp-1440 Rpm Foot Mounted Phase-3 motor. Each unit is supplied with IS 325 certification, guaranteeing standard compliance. A list price is available upon request, and transportation logistics can be tailored to suit your needs. Samples of this motor are available for evaluation, ensuring confidence in your purchase before commitment.

FAQ's of 1Hp-1440 Rpm Foot Mounted Phase-3:

Q: How is the 1Hp-1440 Rpm Foot Mounted Phase-3 motor installed?

A: This motor is foot-mounted, requiring alignment with the mounting holes at a 125 mm distance. Secure it on a stable surface for optimal performance.

Q: What applications can benefit from using this motor?

A: It is ideal for pumps, compressors, and a wide array of industrial and agricultural machinery, thanks to its durability and reliable performance.

Q: What features ensure the longevity of this motor?

A: The motor offers IP55 protection, double sealed ball bearings, and a TEFC enclosure, all contributing to its long-lasting and low-maintenance operation.

Q: Where can this motor be purchased online in India?

A: You can buy this product online from authorized suppliers and traders specializing in industrial motors across India.

Q: What is the advantage of choosing this motor over others?

A: Its high efficacy, superior construction, and low vibration levels ensure efficient operation and minimal maintenance, providing outstanding value for investment.
