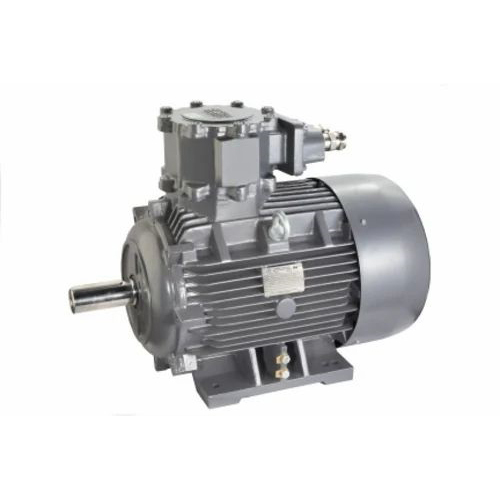

Havells Flameproof Motor

Get a Price/Quote

Product Details:

Cooling Method TEFC (Totally Enclosed Fan Cooled)
Bearing Type Deep groove ball bearing
Features Suitable for hazardous areas, robust construction, high reliability
Rated Frequency 50 Hz
Starting Type DOL / Star Delta
Poles Number 2/4/6/8
Sealed Type Totally Enclosed Fan Cooled (TEFC)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Havells Flameproof Motor Price And Quantity

Minimum Order Quantity 1 Piece

Havells Flameproof Motor Product Specifications

Features Suitable for hazardous areas, robust construction, high reliability
Bearing Type Deep groove ball bearing
Cooling Method TEFC (Totally Enclosed Fan Cooled)
Dimension (L*W*H) Depends on frame size (customized per rating)
Power 0.5 HP to 215 HP
Mounting Type Foot / Flange / Face
Poles Number 2/4/6/8
Starting Type DOL / Star Delta
Rated Frequency 50 Hz
Noise Level Low
Sealed Type Totally Enclosed Fan Cooled (TEFC)
IP Rating IP55
Efficacy IE2, IE3
Weight Varies with model
Motor Type Squirrel Cage Induction Motor
Shaft Diameter As per IEC standard frame size
Pressure Suitable for hazardous locations (Gas Group I, IIA, IIB, IIC)
Phase Three Phase
Color Grey
Ambient Temperature Up to 50C
Power Rating As per requirement
Current Type AC
Torque High starting torque
Standard IS 2148 / IEC 60079-1, IS/IEC 60034, IS 325
Output Power Varies (0.37 kW to 160 kW)
Rated Voltage 415 V
Frequency (MHz) 50 Hz
Horse Power 0.5 HP to 215 HP
Product Type Flameproof Motor
Voltage 415 V
Speed 750 / 1000 / 1500 / 3000 RPM
Protect Feature Flameproof, Totally Enclosed

Bearing Lubrication Sealed for life / Regular grease nipple
Service Factor 1.0
Terminal Box Position Top or side as required
Flame Path Precision ground, tested for flameproof integrity
Cable Entry Double compression cable gland
Enclosure Material Cast Iron
Painting Anti-corrosive epoxy
Thermal Class Class F insulation
Connection Type Star/Delta
Duty Type S1 (Continuous)
Vibration Level Within permissible limits as per IS/IEC standard

Product Description

Get your hands on the top-ranking Havells Flameproof Motor, engineered for reliability in hazardous environments. With a gilt-edged cast iron enclosure and a precision-ground flame path, it promises exceptional safety. Limited stock available-order today to secure this terrific, totally enclosed fan-cooled motor. Designed with Class F insulation and anti-corrosive epoxy painting for longevity, this robust motor delivers high starting torque and low noise. With an IP55 rating, double compression cable entry, and flexible terminal box positions, it ensures protected, versatile operation in demanding settings.

Wide-Ranging Industrial Applications

The Havells Flameproof Motor is crafted for continuous (S1 duty) operation and excels in hazardous sites, including chemical plants, oil refineries, and mining facilities. Thanks to its star/delta connection and premium insulation, it adapts well to varied industrial processes. Users benefit from custom power options and reliable performance under tough ambient conditions up to 50C, making it ideal for mission-critical requirements in safety-intensive locations.

Export Markets, Payment Terms, and Sample Policy

Havells Flameproof Motor enjoys a premium reputation in major export markets such as the Middle East, Africa, and Southeast Asia. Adhering to competitive proposal amounts and favorable asking prices, it suits diverse procurement needs. Flexible payment terms streamline international transactions, and a defined sample policy lets potential buyers evaluate quality before commitment, ensuring supreme satisfaction for top-ranking global clients.

FAQ's of Havells Flameproof Motor:

Q: How does the Havells Flameproof Motor enhance safety in hazardous environments?

A: This motor is built with a flameproof, cast iron enclosure, precision-tested flame paths, and conforms to IS/IEC standards. These features make it safe for sites with explosive gases (Groups I, IIA, IIB, IIC), providing vital protection against ignition risks.

Q: What applications are best suited for the Havells Flameproof Motor?

A: It is ideal for demanding applications in chemical, oil, gas, and mining industries, especially where hazardous materials are present and continuous operation is essential.

Q: When should I choose a totally enclosed fan-cooled (TEFC) motor over other options?

A: Choose TEFC motors like this when reliable cooling, low maintenance, and resistance to dust and moisture are crucial. Their design prevents external contaminants from affecting operation and extends life span in challenging environments.

Q: Where can this motor be installed, considering its mounting options?

A: The motor can be mounted using foot, flange, or face configurations, meaning it adapts to various machinery setups in both indoor and hazardous outdoor sites.

Q: What is the ordering process and what should buyers expect regarding stock and delivery?

A: Buyers are encouraged to order promptly due to limited stock availability. Upon proposal agreement and payment confirmation, delivery timelines and model customization are communicated to ensure seamless procurement.
