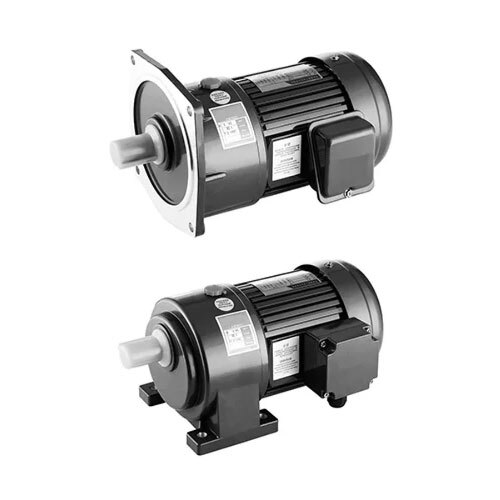

Havells Gearbox Motor

Get a Price/Quote

Product Details:

Sealed Type IP55 Sealed
Pressure Standard Atmospheric
Motor Type Induction Gearbox Motor
Rated Voltage 415 V
Standard IS 325
Current Type AC
Noise Level 70 dB
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Havells Gearbox Motor Price And Quantity

Minimum Order Quantity 100 Piece

Havells Gearbox Motor Product Specifications

Rated Frequency 50 Hz
Horse Power 1.5 HP
Poles Number 4
Phase Three Phase
Starting Type Direct On Line
Efficacy High Efficiency
Torque 9.8 Nm
Cooling Method Fan Cooled
Output Power 1.5 HP
Dimension (L*W*H) 390 mm x 220 mm x 270 mm
Features Long Service Life, Low Maintenance, Energy Efficient
Frequency (MHz) 50 Hz
Ambient Temperature -10C to +50C
Power Rating 1.1 kW
Protect Feature Totally Enclosed Fan Cooled (TEFC)
Speed 1440 RPM
Voltage 415 V
Bearing Type Ball Bearing
Color Grey
Sealed Type IP55 Sealed
Pressure Standard Atmospheric
Product Type Helical Gearbox Motor
IP Rating IP55
Motor Type Induction Gearbox Motor
Mounting Type Foot Mounted
Rated Voltage 415 V
Shaft Diameter 28 mm
Power 1.1 kW
Standard IS 325
Current Type AC
Noise Level 70 dB
Weight 52 KG

Gear Ratio 20:1
Operating Position Horizontal
Lubrication Grease Lubricated
Direction of Rotation Reversible
Insulation Class F
Enclosure Material Cast Iron
Application Industrial, Conveyor, Material Handling

Havells Gearbox Motor Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 5000 Piece Per Month
Delivery Time 10 Days
Main Domestic Market All India

Product Description

Experience outstanding performance and venerable durability with the Havells Gearbox Motor, engineered for first-class industrial applications. Designed with value in mind, this affordable option features a robust cast iron enclosure and reversible direction for flexible usage. Take advantage of high efficiency, long service life, and low maintenance costs, ideal for conveyors and material handling. The gearbox, with a 20:1 gear ratio and 1.5 HP output, is built to precise IS 325 standards, promising reliability and consistency. Fully sealed with an IP55 rating and equipped with a totally enclosed fan-cooled system, it ensures safe, energy-efficient operation even in demanding environments.

Versatile Industrial Usage & Applications

The Havells Gearbox Motor is tailored for rigorous commercial and industrial operations. Suitable for sectors such as manufacturing, warehousing, and logistics, its main areas of application include conveyors, automated material handling, and process-driven environments. The reversible rotation, foot mounting, and horizontal operating position offer outstanding flexibility and adaptability, making it an ideal choice for businesses seeking improved efficiency and streamlined operations across demanding workspaces.

Export Markets, Packaging, and Fast Delivery

Havells Gearbox Motor is delivered with reliable express shipping to both domestic and international markets, ensuring timely arrival for your project needs. Packaging is robust and secure for safe transit. This product serves the vast Indian marketplace and is also exported to numerous global destinations. Competitive quotation and after-sales support are available to traders and suppliers. Benefit from prompt, professional service, and efficient logistics to meet dynamic supply chain requirements, wherever your operations are located.

FAQ's of Havells Gearbox Motor:

Q: How does the IP55 rating benefit my operations?

A: The IP55 rating ensures the motor is protected against dust and water jets, enabling reliable performance in challenging industrial environments, thereby minimizing downtime and maintenance.

Q: What types of industries typically use the Havells Gearbox Motor?

A: This motor is commonly used in industrial sectors like material handling, manufacturing, conveyor systems, and logistics due to its robust construction and adaptability.

Q: Where can I install this gearbox motor for optimal use?

A: For best results, install the motor in horizontal positions as part of conveyor drives or automated systems where high reliability and efficiency are vital.

Q: What is the process for obtaining a quotation or placing an order?

A: Contact your local Havells supplier or trader in India to request a quotation. Orders can be placed with the assurance of express shipping and prompt arrival.

Q: How does grease lubrication enhance motor performance?

A: Grease lubrication ensures smooth operation, reduces friction, and extends the service life of the motor, leading to lower maintenance requirements over time.

Q: When can I expect delivery after placing an order?

A: Delivery times may vary based on location, but with express shipping options, you can expect timely arrival to meet urgent operational needs.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Electric Motor' category

Universal Motor Minimum Order Quantity : 100 Sealed Type : Other, Open Drip Proof Product Type : Other, Universal Motor Pressure : Other, Atmospheric IP Rating : Other, IP20 Motor Type : Universal Motor Mounting Type : Foot Mounted Rated Voltage : 220240 V Shaft Diameter : 8 mm Power : 100200 Watts Standard : IS:996, IEC Noise Level : Low Weight : 2.5 kg (Approx.) Current Type : AC/DC Rated Frequency : 50/60 Hz Horse Power : 0.16 HP Poles Number : Other, 2 Poles Starting Type : DOL Phase : Single Phase Torque : Maximum 0.75 Nm Efficacy : High Cooling Method : Selfventilated Output Power : 1/6 HP (Approx.) Dimension (L*W*H) : 185x80x100 mm (Approx.) Features : Compact Design, High Speed, Long Life Frequency (MHz) : 50/60 Hz Ambient Temperature : 15C to 40C Protect Feature : Other, Thermal Protection Power Rating : 100200 W Voltage : 220240 V AC Speed : 600018000 RPM Bearing Type : Ball Bearing Color : Silver and Black

Send Inquiry

1 KW Radicon Series F Helical Shaft Mounted Gear Motor Minimum Order Quantity : 100 Sealed Type : Other, Oil Sealed Product Type : Other, Helical Shaft Mounted Gear Motor Pressure : Other, Atmospheric IP Rating : Other, IP55 Motor Type : Helical Gear Motor Mounting Type : Shaft Mounted Rated Voltage : 415 V Shaft Diameter : 38 mm Power : 1 kW Standard : IEC/IS Standards Noise Level : 68 dB(A) Weight : Approx. 65 Kg Current Type : AC Rated Frequency : 50 Hz Horse Power : 1.34 HP Poles Number : 4 Starting Type : Direct On Line (DOL) Phase : Three Phase Torque : Up to 130 Nm Efficacy : IE2 High Efficiency Cooling Method : Fan Cooled Output Power : 1 KW Dimension (L*W*H) : 470 x 270 x 250 mm Features : Compact design, robust construction, easy installation, maintenancefree Frequency (MHz) : 50 Hz Ambient Temperature : 15C to +40C Protect Feature : Other, Totally Enclosed Fan Cooled (TEFC) Power Rating : 1 kW Voltage : 415 V Speed : 1440 RPM Bearing Type : Deep Groove Ball Bearing Color : Blue

Send Inquiry

Linear Motor Minimum Order Quantity : 100 Sealed Type : Other, Fully Enclosed Product Type : Other, Electric Linear Motor Pressure : Other, Atmospheric IP Rating : Other, IP54 / IP65 Motor Type : Linear Motor Mounting Type : Base / Flange Mounted Rated Voltage : 220 400 V Shaft Diameter : As per model Power : Customized Standard : IEC / IS Noise Level : Low Noise Weight : Depends on model Current Type : AC Rated Frequency : 50 Hz Horse Power : Up to 5 HP Poles Number : Other, 2, 4, 6 poles Starting Type : Direct On Line Phase : Other, Single Phase / Three Phase Torque : High Torque Efficacy : High Efficiency Cooling Method : Air Cooled Output Power : Customized as per application Dimension (L*W*H) : As per model Features : Maintenance free, Compact Structure, Low Heat Frequency (MHz) : 50/60 Hz Ambient Temperature : 10C to +50C Protect Feature : Other, Overload Protection Power Rating : 0.1 kW to 5 kW Voltage : 220 V / 380 V Speed : Up to 5000 mm/sec Bearing Type : Ball Bearing Color : Silver / Grey

Send Inquiry

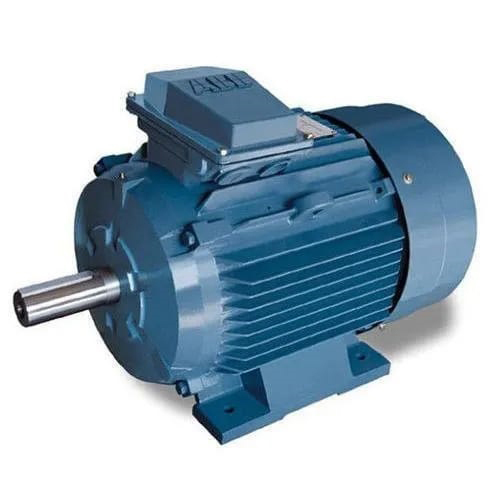

Three Phase Electric Motor Minimum Order Quantity : 1 Sealed Type : Other, IP55 Sealed Product Type : Other, Three Phase Electric Motor Pressure : Other, Atmospheric IP Rating : Other, IP55 Motor Type : Squirrel Cage Induction Motor Mounting Type : Foot Mounted Rated Voltage : 415 V Shaft Diameter : 38 mm Power : 3.7 kW Standard : IS 325, IEC 60034 Noise Level : 70 dB Weight : 44 kg Current Type : AC Rated Frequency : 50 Hz Horse Power : 5 HP Poles Number : 4 Starting Type : Direct Online (DOL) Phase : Three Phase Torque : 24 Nm (approx.) Efficacy : IE2 High Efficiency Cooling Method : Fan Cooled Output Power : 5 HP (3.7 kW) Dimension (L*W*H) : 410 x 265 x 285 mm Features : Rugged Design, Low Maintenance, High Efficiency Frequency (MHz) : 50 Hz Ambient Temperature : 15C to 40C Protect Feature : Other, Totally Enclosed Fan Cooled (TEFC) Power Rating : 3.7 kW Voltage : 415 V Speed : 1440 RPM Bearing Type : Double Shielded Ball Bearings Color : Blue
