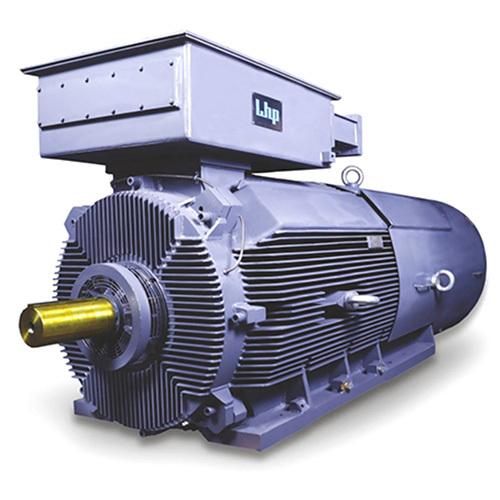

Cast Iron Electric Motor

Get a Price/Quote

Product Details:

Efficacy High Efficiency
Starting Type Direct On Line
Motor Type Cast Iron Electric Motor
Voltage 415 V
Rated Frequency 50 Hz
Sealed Type Totally Enclosed
Horse Power 3 HP
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Cast Iron Electric Motor Price And Quantity

Minimum Order Quantity 1 Piece

Cast Iron Electric Motor Product Specifications

Poles Number 4 Poles
Color Blue / Grey
Weight 30 kg
IP Rating IP55
Power Rating 2.2 kW
Torque 14.6 Nm
Rated Voltage 415 V
Cooling Method External Fan Cooling
Current Type AC
Mounting Type Foot Mounted
Phase Three Phase
Ambient Temperature -15C to 40C
Features Robust design, Vibration free, Long life, Energy efficient
Shaft Diameter 28 mm
Noise Level Below 75 dB
Bearing Type Deep Groove Ball Bearing
Power 2.2 kW
Protect Feature Totally Enclosed Fan Cooled (TEFC)
Product Type Electric Motor
Horse Power 3 HP
Dimension (L*W*H) 320 mm x 220 mm x 240 mm
Frequency (MHz) 50 Hz
Standard IS 325/IEC 60034-1
Pressure Standard Atmospheric
Output Power 3 HP
Rated Frequency 50 Hz
Sealed Type Totally Enclosed
Efficacy High Efficiency
Speed 1440 RPM
Starting Type Direct On Line
Motor Type Cast Iron Electric Motor
Voltage 415 V

Direction of Rotation Bi-Directional
Application Industrial, Pumps, Compressors, Blowers, Conveyors
Duty Cycle S1 Continuous
Construction Squirrel Cage Induction Motor
Frame Material Cast Iron
Lubrication Grease lubricated for life
Cooling Fan Dynamically Balanced
Number of Terminals 6
Insulation Class Class F
Terminal Box Position Top
Altitude Limit Up to 1000 meters

Product Description

Get the highly recommended Cast Iron Electric Motor now at an unbeatable price cut! This first-class, 3 HP Squirrel Cage Induction Motor is constructed with robust cast iron, ensuring exceptional durability and performance. Designed with Class F insulation and a dynamically balanced cooling fan, the motor operates at high efficiency and minimal noise, making it perfect for industrial applications. Its bi-directional rotation, top terminal box, and energy-saving features make it a top choice for pumps, compressors, blowers, and conveyors. Highly reliable for continuous duty, it offers vibration-free, maintenance-free operation.

Durability and Utility for Industrial Excellence

Crafted with a cast iron frame, this electric motor is favored for its robust design and vibration-free performance. Ideal for a wide range of industrial uses, it excels in running pumps, compressors, blowers, and conveyors with optimal torque and efficiency. Used extensively by manufacturing units, process plants, and utility providers, its long-life and maintenance-free lubrication make it an excellent investment for operational dependability.

Certified Quality & Seamless Transactions

Handover of the Cast Iron Electric Motor comes complete with certifications as per IS 325 and IEC 60034-1 standards, ensuring quality and compliance. Payment terms are designed for flexibility, while shipment can be arranged from major Indian FOB ports. Charges are transparent, providing a smooth purchasing process for suppliers and traders seeking excellence in their equipment procurement.

FAQ's of Cast Iron Electric Motor:

Q: How do I install and connect the Cast Iron Electric Motor?

A: The motor is designed for simple, foot-mounted installation, with a top-positioned terminal box and six terminals for easy wiring. Always follow the manufacturer's guidelines and safety standards during setup.

Q: What industrial applications is this electric motor best used for?

A: This first-class motor is highly recommended for use in pumps, compressors, blowers, and conveyors across various industrial sectors due to its exceptional efficiency and reliability.

Q: Where can shipment and handover for this product take place?

A: Shipment and handover can be arranged from major FOB ports in India, as specified during the order process.

Q: What certifications does the Cast Iron Electric Motor carry?

A: This motor meets IS 325 and IEC 60034-1 standards, ensuring exceptional quality and performance for industrial applications.

Q: What are the benefits of the totally enclosed fan cooled (TEFC) feature?

A: TEFC protects the internal components from dust, moisture, and other contaminants, enhancing the lifespan and reliability of the motor in harsh environments.
