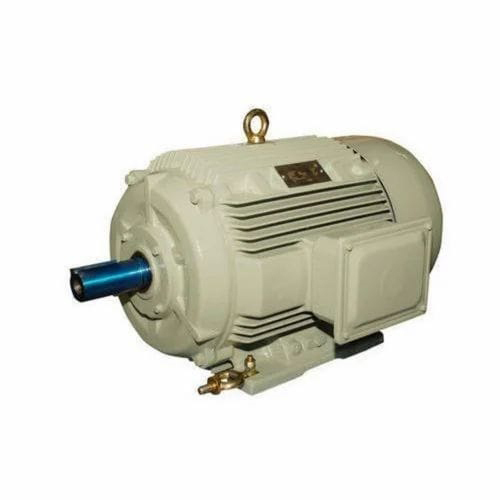

100KW Crompton Greaves Electric Motor

Get a Price/Quote

Product Details:

Horse Power 134 HP
Poles Number 4
Starting Type Direct On Line (DOL)
Torque Approx. 645 Nm
Standard IS 325 / IEC 60034
Pressure Standard Atmosphere
Rated Frequency 50 Hz
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

100KW Crompton Greaves Electric Motor Price And Quantity

Minimum Order Quantity 1 Piece

100KW Crompton Greaves Electric Motor Product Specifications

Output Power 100 KW
Features High starting torque, vibration free operation, low maintenance
Power Rating 100 KW
Phase Three Phase
Rated Voltage 415 V
Motor Type Squirrel Cage Induction Motor
Product Type Electric Motor
Bearing Type Ball and Roller Bearing
Sealed Type Sealed
Efficacy IE2 (High Efficiency)
Color Blue
Cooling Method TEFC (Fan Cooled)
Current Type AC
Mounting Type Foot Mounted (B3)
Noise Level Less than 85 dB
Voltage 415 V
Ambient Temperature -15C to +50C
Shaft Diameter 95 mm (Approx.)
Rated Frequency 50 Hz
Pressure Standard Atmosphere
Torque Approx. 645 Nm
Power 100 KW / 134 HP
Standard IS 325 / IEC 60034
Protect Feature Totally Enclosed Fan Cooled (TEFC)
Speed 1480 RPM
Frequency (MHz) 50 Hz
Weight 780 kg
Poles Number 4
Horse Power 134 HP
Dimension (L*W*H) 1320 mm x 800 mm x 960 mm (Approx.)
IP Rating IP55
Starting Type Direct On Line (DOL)

Enclosure TEFC
Duty Type S1 (Continuous)
Lubrication Grease Lubricated
Service Factor 1.15
Frame Size 315L
Insulation Class Class F
Application Industrial Pumps, Compressors, Fans, Conveyors
Efficiency at Full Load ~94%

Product Description

Experience elite engineering with the Crompton Greaves 100KW Electric Motor, a splendid choice for heavy-duty industrial applications. Engineered with Class F insulation, robust 315L frame, and an impressive efficiency of ~94%, this marvel is designed for soaring performance, trusted by suppliers and traders across India. Its TEFC enclosure, high service factor (1.15), and low maintenance ensure enduring reliability. From fans to compressors and conveyors, grab yours to power your industry with a motor that guarantees vibration-free operation and unparalleled output. Buy now for a marvelous transformation!

Exceptional Application Versatility

The 100KW Crompton Greaves Electric Motor is marvelously suited for a myriad of heavy-duty applications such as industrial pumps, compressors, fans, and conveyors. Its robust build and superior Class F insulation make it ideal for continuous use in demanding industrial environments. Designed for seamless integration, this motor works splendidly on surfaces where reliable, vibration-free operation is crucial, making it perfect for factories, manufacturing plants, and process industries requiring high performance and durability.

Efficient Logistics and Seamless Delivery

With prompt logistics and efficient delivery rates, your purchase order for the 100KW Crompton Greaves Electric Motor is processed smoothly and shipped swiftly. Sample units are available for qualifying orders, ensuring confidence before bulk purchases. The product is exported to major international markets, affirming its global reliability and appeal. Secure your order, track your shipment, and experience elite after-sales support to complement your high-efficiency investment. Grab yours with ease-rely on our trusted delivery process!

FAQ's of 100KW Crompton Greaves Electric Motor:

Q: How does the 100KW Crompton Greaves Electric Motor enhance industrial performance?

A: This electric motor delivers splendid efficiency (~94%), high starting torque, and vibration-free operation, making it ideal for continuous, reliable service in heavy-duty industrial applications such as pumps and conveyor systems.

Q: What are the main usage applications for this motor?

A: The motor is especially suitable for industrial pumps, compressors, fans, and conveyors. Its robust construction and dependable performance make it perfect for factories and manufacturing units requiring continuous and efficient operation.

Q: When can I expect delivery after placing a purchase order?

A: Delivery timelines depend on the location and size of your order, but typically, logistics are expedited to ensure the motor reaches you promptly. Contact the supplier for exact delivery schedules.

Q: Where can this electric motor be used effectively?

A: It can be installed in various industrial sectors, including manufacturing plants, processing units, and environments where continuous running and high reliability are essential.

Q: What is the process for obtaining a sample unit?

A: Samples are available upon request for qualifying purchase orders. Contact your supplier or trader to initiate the sample procurement process and discuss eligibility criteria.

Q: What are the key benefits of choosing this Crompton Greaves motor?

A: Key benefits include high efficiency, superb durability with Class F insulation, minimal maintenance, and compliance with IS and IEC standards, ensuring long-term cost savings and reliable operation even in demanding conditions.
