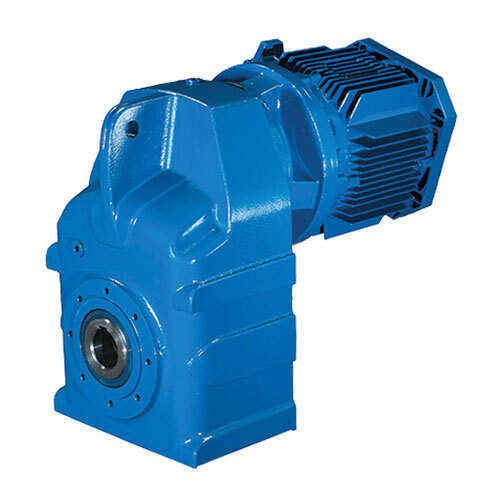

1 KW Radicon Series F Helical Shaft Mounted Gear Motor

Get a Price/Quote

Product Details:

Standard IEC/IS Standards
Rated Voltage 415 V
Rated Frequency 50 Hz
Starting Type Direct On Line (DOL)
Noise Level 68 dB(A)
Cooling Method Fan Cooled
Poles Number 4
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

1 KW Radicon Series F Helical Shaft Mounted Gear Motor Price And Quantity

Minimum Order Quantity 100 Piece

Input Type Flange Mounted
Service Factor 1.5
Output Shaft Key Included
Duty S1 Continuous
Maximum Output Torque Up to 130 Nm
Rotation Bi-directional
Gear Ratio Range 5:1 to 20:1
Thermal Protection Provided
Lubrication Oil Splash Lubrication
Insulation Class Class F
Application Conveyor, Material Handling, Industrial Machinery
Temperature Rise Within Permissible Limits

1 KW Radicon Series F Helical Shaft Mounted Gear Motor Product Specifications

Bearing Type Deep Groove Ball Bearing
Frequency (MHz) 50 Hz
Current Type AC
Efficacy IE2 High Efficiency
Dimension (L*W*H) 470 x 270 x 250 mm
Power Rating 1 kW
Voltage 415 V
Features Compact design, robust construction, easy installation, maintenance-free
Ambient Temperature -15C to +40C
Horse Power 1.34 HP
Shaft Diameter 38 mm
Protect Feature Totally Enclosed Fan Cooled (TEFC)
Phase Three Phase
Output Power 1 KW
Sealed Type Oil Sealed
Speed 1440 RPM
Pressure Atmospheric
Product Type Helical Shaft Mounted Gear Motor
Standard IEC/IS Standards
Rated Voltage 415 V
Rated Frequency 50 Hz
Starting Type Direct On Line (DOL)
Mounting Type Shaft Mounted
Noise Level 68 dB(A)
Power 1 kW
Cooling Method Fan Cooled
Poles Number 4
Motor Type Helical Gear Motor
Torque Up to 130 Nm
Color Blue
Weight Approx. 65 Kg
IP Rating IP55

Input Type Flange Mounted
Service Factor 1.5
Output Shaft Key Included
Duty S1 Continuous
Maximum Output Torque Up to 130 Nm
Rotation Bi-directional
Gear Ratio Range 5:1 to 20:1
Thermal Protection Provided
Lubrication Oil Splash Lubrication
Insulation Class Class F
Application Conveyor, Material Handling, Industrial Machinery
Temperature Rise Within Permissible Limits

1 KW Radicon Series F Helical Shaft Mounted Gear Motor Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 5000 Piece Per Month
Delivery Time 10 Days
Main Domestic Market All India

Product Description

The 1 KW Radicon Series F Helical Shaft Mounted Gear Motor is highly recommended for heavy-duty material handling, conveyor, and industrial machinery applications. With a superb gear ratio range of 5:1 to 20:1 and a maximum output torque of up to 130 Nm, this limited-time offering boasts unmatchable efficiency and robust performance. Its ineffable design features include a totally enclosed fan-cooled motor, class F insulation, IP55 protection, and maintenance-free operation. Enjoy quick access, swift installation, and the peace of mind brought by a 1.5 service factor and superior oil splash lubrication. Act now to experience unmatched excellence!

Key Features and Usage Instructions

The 1 KW Radicon Series F Helical Shaft Mounted Gear Motor comes with superb features like oil splash lubrication, totally enclosed fan cooling, and robust deep groove ball bearings. Its bi-directional rotation and compact, maintenance-free design make it perfect for conveyors and material handling. Simply mount the gear motor on the shaft using the included output shaft key, wire it for three-phase AC, and enjoy reliable, continuous operation across a wide temperature range.

Payment Terms, Export Markets, and Delivery Details

Supply of the 1 KW Radicon Series F Gear Motor is packaged for safe dispatch and prompt delivery worldwide. Proposal amount and payment terms are shared in advance, ensuring transparent business dealings. Main export markets include India and global regions requiring IEC/IS standard equipment. Packing & dispatch are meticulously handled, typically offering short delivery times to meet project timelines and customer commitments.

FAQ's of 1 KW Radicon Series F Helical Shaft Mounted Gear Motor:

Q: How do I install the 1 KW Radicon Series F Helical Shaft Mounted Gear Motor?

A: Mount the motor directly onto the shaft using the included output shaft key. Ensure proper alignment and secure the flange tightly. Wiring should be done by a qualified electrician to connect with a three-phase 415 V AC supply.

Q: What applications are ideal for this gear motor?

A: This gear motor is optimized for conveyor systems, material handling equipment, and various industrial machinery, thanks to its unmatchable performance and robust construction.

Q: What protection and safety features does this model offer?

A: It provides complete protection with an IP55 rated enclosure, totally enclosed fan cooling (TEFC), oil sealed design, thermal protection, and insulation Class F for operational safety.

Q: Where can this gear motor be used regarding environmental conditions?

A: The unit operates efficiently at ambient temperatures between -15C and +40C and is designed for atmospheric pressures, making it suitable for most industrial environments.

Q: What are the main benefits of choosing this gear motor?

A: Users enjoy high energy efficiency (IE2), low noise emissions, continuous duty cycle (S1), and reliable, maintenance-free operation-making it highly recommended for demanding industrial uses.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Electric Motor' category

Single Phase AC Motors Minimum Order Quantity : 100 Noise Level : <60 dB Mounting Type : Foot / Flange Mounting Cooling Method : Fan Cooled Power : 186 W to 2238 W Poles Number : Other, 2 Pole / 4 Pole Torque : 0.45 Nm to 7.6 Nm Motor Type : Single Phase AC Induction Motor Weight : 8 kg to 45 kg Color : Grey/Blue/Optional IP Rating : Other, IP44 / IP55 Product Type : Other, Single Phase AC Motor Standard : IEC/IS Rated Voltage : 220 V Rated Frequency : 50 Hz Starting Type : Capacitor Start Power Rating : 0.18 kW to 2.2 kW Ambient Temperature : 15C to 45C Voltage : 220 V / 230 V Features : Low Noise, High Efficiency, Easy to Install Phase : Single Phase Output Power : 0.25 HP to 3 HP Shaft Diameter : 14 mm to 28 mm Horse Power : 0.25 HP to 3 HP Protect Feature : Other, Totally Enclosed Fan Cooled (TEFC) Speed : 1440 RPM / 2880 RPM Sealed Type : Other, Sealed Bearing Type : Double Sealed Ball Bearing Frequency (MHz) : 50/60 Hz Current Type : AC Dimension (L*W*H) : Custom / As per standard sizes Efficacy : High Efficiency Pressure : Other, Normal Atmosphere

Send Inquiry

Split Phase AC Motors Minimum Order Quantity : 100 Noise Level : Low Noise Mounting Type : Foot / Flange Mounted Cooling Method : Fan Cooled Power : 0.18 kW to 2.2 kW Poles Number : Other, 2 / 4 Poles Torque : High Starting Torque Motor Type : Split Phase AC Motor Weight : 10 65 Kg (depends on HP) Color : Blue / Grey IP Rating : ip44 Product Type : Other, Single Phase Induction Motor Standard : ISI / IEC Rated Voltage : 220240 V Rated Frequency : 50 Hz Starting Type : Capacitor Start Power Rating : 0.18 kW 2.2 kW Ambient Temperature : 15C to +50C Voltage : 220240 V Features : Low Maintenance, Robust Design, Reliable Performance Phase : Single Phase Output Power : 0.25 HP to 3 HP Shaft Diameter : 14 mm 28 mm Horse Power : 0.25 to 3 HP Protect Feature : Other, Totally Enclosed Fan Cooled (TEFC) / Drip Proof Speed : 1440/2880 RPM Sealed Type : Other, Drip Proof / TEFC Bearing Type : Ball Bearing Frequency (MHz) : 50 Hz Current Type : AC Dimension (L*W*H) : According to Model Efficacy : Class B / F Pressure : Other, Normal Atmospheric

Send Inquiry

Havells Gearbox Motor Minimum Order Quantity : 100 Noise Level : 70 dB Mounting Type : Foot Mounted Cooling Method : Fan Cooled Power : 1.1 kW Poles Number : 4 Torque : 9.8 Nm Motor Type : Induction Gearbox Motor Weight : 52 KG Color : Grey IP Rating : Other, IP55 Product Type : Other, Helical Gearbox Motor Standard : IS 325 Rated Voltage : 415 V Rated Frequency : 50 Hz Starting Type : Direct On Line Power Rating : 1.1 kW Ambient Temperature : 10C to +50C Voltage : 415 V Features : Long Service Life, Low Maintenance, Energy Efficient Phase : Three Phase Output Power : 1.5 HP Shaft Diameter : 28 mm Horse Power : 1.5 HP Protect Feature : Other, Totally Enclosed Fan Cooled (TEFC) Speed : 1440 RPM Sealed Type : Other, IP55 Sealed Bearing Type : Ball Bearing Frequency (MHz) : 50 Hz Current Type : AC Dimension (L*W*H) : 390 mm x 220 mm x 270 mm Efficacy : High Efficiency Pressure : Other, Standard Atmospheric

Send Inquiry

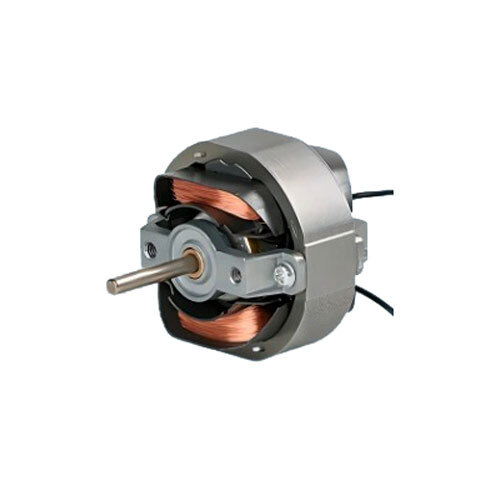

Shaded Pole Motor Minimum Order Quantity : 100 Noise Level : Low Mounting Type : Foot / Flange Mounted Cooling Method : Air Cooled Power : 15W Poles Number : Other, 2, 4 Torque : 0.2 0.45 Nm Motor Type : Shaded Pole Motor Weight : Approx. 0.51.5 kg Color : Silver / Black IP Rating : Other, IP20 Product Type : Other, Electric Motor Standard : IS 996 / IEC Rated Voltage : 220240V Rated Frequency : 50/60 Hz Starting Type : Self Starting Power Rating : 534 W Ambient Temperature : 10C to +50C Voltage : 220240V AC Features : Compact size, reliable operation, low maintenance Phase : Single Phase Output Power : 534W Shaft Diameter : 58 mm Horse Power : 0.03 0.05 HP Protect Feature : Other, Thermally Protected Speed : 13002900 RPM Sealed Type : Other, Open / Drip Proof Bearing Type : Sleeve / Ball Bearing Frequency (MHz) : 50/60 MHz Current Type : AC Dimension (L*W*H) : As per model Efficacy : IE1
