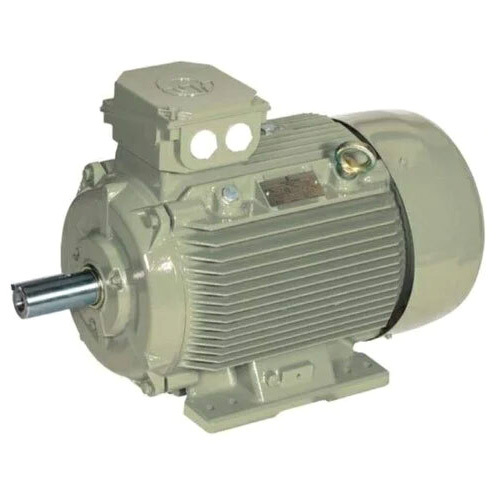

30hp-1440 Rpm Foot Mounted 3 Phase Make - Cgl
Product Details:
- Bearing Type Deep Groove Ball Bearing
- Efficacy IE2/IE3
- Pressure Standard Duty
- Poles Number 4 Poles
- Features High performance, robust construction, low maintenance
- Starting Type DOL
- Noise Level Less than 85 dB
- Click to View more
X
30hp-1440 Rpm Foot Mounted 3 Phase Make - Cgl Price And Quantity
- 1 Piece
30hp-1440 Rpm Foot Mounted 3 Phase Make - Cgl Product Specifications
- Less than 85 dB
- 4 Poles
- High performance, robust construction, low maintenance
- DOL
- -20C to +50C
- 50 Hz
- 30 HP
- IE2/IE3
- Blue
- Deep Groove Ball Bearing
- Standard Duty
- 55 mm (Approx.)
- Electric Motor
- Foot Mounted
- 22.37 kW
- 350 kg (Approx.)
- 865 mm x 435 mm x 520 mm (Approx.)
- 22.37 kW
- 1440 RPM
- 30 HP
- Squirrel Cage Induction Motor
- IP55
- Totally Enclosed Fan Cooled (TEFC)
- Totally Enclosed
- AC
- 50 Hz
- IS 325
- 415 V
- Fan Cooled
- 415 V
- 196 Nm (Approx.)
- 3 Phase
- Class F
- 200L
- S1 (Continuous)
- Grease Lubricated
- TEFC (Totally Enclosed Fan Cooled)
- Bi-directional
- 406 mm x 318 mm (Approx.)
- Anti-corrosive Epoxy
- Aluminium Die Cast
- Industrial, Pumps, Compressors, Fans, etc.
- 1.15
- Optional
Product Description
Access the power and reliability of the CGL 30hp-1440 RPM Foot Mounted 3 Phase Motor-a prodigious champion designed for industrial greatness. Jump on this affordable solution featuring an immaculate aluminium die-cast rotor and exquisite anti-corrosive epoxy painted frame, ensuring robust performance with minimal maintenance. This exquisite unit, rated at 22.37 kW and IE2/IE3 efficient, comes equipped with Class F insulation and IP55 protection for ultimate durability. Ideal for pumps, compressors, and fans, it's engineered for versatility, long service life, and exceptional operational safety in demanding environments.
Key Features and Applications
Discover a feature-rich industrial motor with immaculate build quality. The 30hp-1440 RPM Foot Mounted 3 Phase CGL combines high performance, robust construction, and low maintenance needs. Its totally enclosed fan-cooled (TEFC) enclosure, deep groove ball bearings, and anti-corrosive epoxy coating ensure longevity. Perfect for application surfaces such as industrial plants, pump rooms, compressors, and fans-this prodigious machine delivers reliability and operational efficiency wherever you need continuous, heavy-duty power.
FOB Port, Delivery, and Sampling
Order processing for the 30hp-1440 RPM Foot Mounted 3 Phase CGL is streamlined for minimal delays. Once an order is confirmed, the item is quickly handed over to goods transport at our designated Indian FOB port. Delivery time is designed for promptness, ensuring the motor reaches your location as efficiently as possible. Interested buyers can also request a sample to verify performance before committing to a full order.
Key Features and Applications
Discover a feature-rich industrial motor with immaculate build quality. The 30hp-1440 RPM Foot Mounted 3 Phase CGL combines high performance, robust construction, and low maintenance needs. Its totally enclosed fan-cooled (TEFC) enclosure, deep groove ball bearings, and anti-corrosive epoxy coating ensure longevity. Perfect for application surfaces such as industrial plants, pump rooms, compressors, and fans-this prodigious machine delivers reliability and operational efficiency wherever you need continuous, heavy-duty power.
FOB Port, Delivery, and Sampling
Order processing for the 30hp-1440 RPM Foot Mounted 3 Phase CGL is streamlined for minimal delays. Once an order is confirmed, the item is quickly handed over to goods transport at our designated Indian FOB port. Delivery time is designed for promptness, ensuring the motor reaches your location as efficiently as possible. Interested buyers can also request a sample to verify performance before committing to a full order.
FAQ's of 30hp-1440 Rpm Foot Mounted 3 Phase Make - Cgl:
Q: How is the 30hp-1440 RPM Foot Mounted 3 Phase Make - CGL typically used in industrial applications?
A: This motor is ideal for running high-demand equipment like pumps, compressors, and fans, making it a preferred choice for various continuous industrial and commercial duties.Q: What makes the CGL 30hp-1440 RPM motor an affordable yet robust choice?
A: Its combination of foot mounting, aluminium die-cast rotor, Class F insulation, and IE2/IE3 efficiency provides a prodigious balance between affordability, durability, and operational excellence.Q: Where can I access technical support or after-sales service for this product?
A: Support is provided directly through authorized suppliers and traders across India, ensuring quick solutions for any technical or service needs.Q: What is the order processing and delivery procedure for this motor?
A: Once you place an order, your product is promptly processed, securely packaged, and handed over to goods transport at our designated FOB port, with timely delivery to your desired location.Q: When is sampling available for the CGL 30hp-1440 RPM motor?
A: Samples can be requested prior to placing a full order, allowing buyers to evaluate performance and compatibility with their intended applications.Q: How does the TEFC (Totally Enclosed Fan Cooled) design benefit usage?
A: The TEFC enclosure protects the motor from dust, moisture, and contaminants, extending its lifespan and ensuring reliable operation even in harsh working conditions.Tell us about your requirement
