15HP 900RPM Crompton Greaves Electric Motor

Get a Price/Quote

Product Details:

Torque 119 Nm
Motor Type Squirrel Cage Induction Motor
Rated Frequency 50 Hz
Noise Level <72 dB
Sealed Type Totally Enclosed
Pressure Standard Atmospheric
Starting Type Direct On Line (DOL)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

15HP 900RPM Crompton Greaves Electric Motor Price And Quantity

Minimum Order Quantity 1 Piece

15HP 900RPM Crompton Greaves Electric Motor Product Specifications

Frequency (MHz) 50 Hz
Horse Power 15 HP
Standard IS: 325, IEC 60034-1
Voltage 415 V
Current Type AC
Efficacy High Efficiency
Cooling Method Air Cooled
Rated Voltage 415 V
Features Energy Efficient, Low Vibration, Long Life
Power Rating 11.2 kW
Output Power 15 HP
IP Rating IP55
Speed 900 RPM
Power 11.2 kW
Poles Number 8
Product Type Electric Motor
Phase Three Phase
Ambient Temperature -15C to +50C
Dimension (L*W*H) 690 x 370 x 420 mm
Shaft Diameter 48 mm
Weight 125 kg
Bearing Type Deep Groove Ball Bearing
Protect Feature Totally Enclosed Fan Cooled (TEFC)
Color Blue
Noise Level <72 dB
Sealed Type Totally Enclosed
Motor Type Squirrel Cage Induction Motor
Rated Frequency 50 Hz
Torque 119 Nm
Pressure Standard Atmospheric
Starting Type Direct On Line (DOL)
Mounting Type Foot Mounted

Insulation Class F
Applicable Standards IS, IEC
Cooling Fan Material Plastic/Aluminium
Enclosure TEFC
Duty Type S1 (Continuous Duty)
Core Material Laminated Steel
Frequency Tolerance 5%
Rotor Type Aluminum Die Cast
Frame Size 180L
Paint Type Epoxy Powder Coated
Stator Winding Copper
Service Factor 1.15
Voltage Range 380-440 V

Product Description

Take advantage of the top-rated 15HP 900RPM Crompton Greaves Electric Motor, engineered for first-rate performance in demanding industrial settings. Crafted with a robust laminated steel core, copper stator windings, and exceptional insulation (Class F), this motor excels in efficiency and durability. Its totally enclosed fan-cooled (TEFC) design, high service factor, and unbeatable price make it the best choice for running heavy-duty machinery continuously. Benefit from its energy efficiency, low noise, and long operating life-this 8-pole, foot-mounted motor is the best in its class for reliability and value.

Exceptional Versatility: Usage & Applications

The 15HP 900RPM Crompton Greaves Electric Motor is specifically designed for continuous duty in various industrial settings. Its high torque and low vibration make it ideal for pumps, conveyors, compressors, and specialized machinery. Featuring a direct-on-line (DOL) starting method and foot mounting, installation is straightforward. This electric motor is perfect wherever robust and reliable power delivery is needed, ensuring stable operation under varied load conditions and ambient temperatures from -15C to +50C.

Certified Quality Delivered: Certifications & Logistics

Certified to IS: 325 and IEC 60034-1 standards, this motor assures world-class safety and performance. Shipped from trusted suppliers and traders in India, each unit is carefully packed for secure shipment. With a superior supply ability to charge large-scale projects, the motor typically departs from major Indian FOB ports. Every shipment is managed promptly and efficiently, ensuring timely delivery while maintaining the highest level of product integrity throughout the logistics process.

FAQ's of 15HP 900RPM Crompton Greaves Electric Motor:

Q: How should the 15HP 900RPM Crompton Greaves Electric Motor be installed for optimum performance?

A: The motor should be foot-mounted on a stable, level surface using the appropriate fasteners. Ensure the alignment of the shaft and coupling before connecting to the power supply. Follow the manufacturer's wiring diagram and connect to a direct-on-line (DOL) starter for safe operation.

Q: What types of industrial applications are best suited for this electric motor?

A: This motor is ideal for running pumps, compressors, conveyors, and other machinery requiring continuous operation. Its high torque and energy-efficient performance make it suitable for heavy-duty industrial environments demanding reliability and durability.

Q: Where can the 15HP 900RPM Crompton Greaves Electric Motor be shipped from?

A: The motor is shipped from India by reliable suppliers and traders. Shipments usually depart from prominent Indian FOB ports, ensuring broad supply capabilities and prompt delivery to both domestic and international destinations.

Q: What certifications does this motor comply with?

A: The motor meets IS: 325 and IEC 60034-1 standards, which confirms it has undergone rigorous safety and quality checks suitable for industrial applications worldwide.

Q: What are the main benefits of choosing this electric motor for my machinery?

A: Key benefits include high operational efficiency, low noise levels, robust construction, long life, and compliance with international standards. Its unbeatable price and first-rate reliability make it a sound investment for any industrial setup.

Q: When should the cooling fan material choice be considered during selection?

A: Choose between plastic or aluminium cooling fans based on the operational environment; aluminium fans are recommended for high-temperature or demanding applications due to their enhanced durability.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Electric Motor' category

Split Phase AC Motors Minimum Order Quantity : 100 Voltage : 220240 V Standard : ISI / IEC Current Type : AC Horse Power : 0.25 to 3 HP Frequency (MHz) : 50 Hz IP Rating : ip44 Speed : 1440/2880 RPM Output Power : 0.25 HP to 3 HP Features : Low Maintenance, Robust Design, Reliable Performance Power Rating : 0.18 kW 2.2 kW Efficacy : Class B / F Cooling Method : Fan Cooled Rated Voltage : 220240 V Ambient Temperature : 15C to +50C Product Type : Other, Single Phase Induction Motor Phase : Single Phase Power : 0.18 kW to 2.2 kW Poles Number : Other, 2 / 4 Poles Weight : 10 65 Kg (depends on HP) Bearing Type : Ball Bearing Shaft Diameter : 14 mm 28 mm Dimension (L*W*H) : According to Model Starting Type : Capacitor Start Pressure : Other, Normal Atmospheric Mounting Type : Foot / Flange Mounted Sealed Type : Other, Drip Proof / TEFC Noise Level : Low Noise Color : Blue / Grey Protect Feature : Other, Totally Enclosed Fan Cooled (TEFC) / Drip Proof Torque : High Starting Torque Rated Frequency : 50 Hz Motor Type : Split Phase AC Motor

Send Inquiry

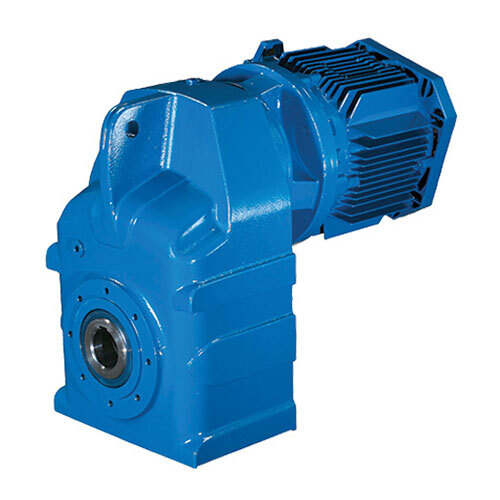

1 KW Radicon Series F Helical Shaft Mounted Gear Motor Minimum Order Quantity : 100 Voltage : 415 V Standard : IEC/IS Standards Current Type : AC Horse Power : 1.34 HP Frequency (MHz) : 50 Hz IP Rating : Other, IP55 Speed : 1440 RPM Output Power : 1 KW Features : Compact design, robust construction, easy installation, maintenancefree Power Rating : 1 kW Efficacy : IE2 High Efficiency Cooling Method : Fan Cooled Rated Voltage : 415 V Ambient Temperature : 15C to +40C Product Type : Other, Helical Shaft Mounted Gear Motor Phase : Three Phase Power : 1 kW Poles Number : 4 Weight : Approx. 65 Kg Bearing Type : Deep Groove Ball Bearing Shaft Diameter : 38 mm Dimension (L*W*H) : 470 x 270 x 250 mm Starting Type : Direct On Line (DOL) Pressure : Other, Atmospheric Mounting Type : Shaft Mounted Sealed Type : Other, Oil Sealed Noise Level : 68 dB(A) Color : Blue Protect Feature : Other, Totally Enclosed Fan Cooled (TEFC) Torque : Up to 130 Nm Rated Frequency : 50 Hz Motor Type : Helical Gear Motor
